Padfone Infinity broken screen, can't find any tutorial/manual


Moderators: Marc Schattorie, ctys2ard, oroo708, JHS_NL, RaithK, allram, Frits

Author

Post

andreasmj

Wed Dec 04 2013, 09:48am

{ASUS_EMPLOYEE}

Registered Member #2324

Joined: Wed Dec 04 2013, 09:31am
Location: Oslo
Posts: 2
Thanked 0 time in 0 post

Dear all fellow Padfone owners,

I managed to break the lower half of the screen yesterday. The screen still works, the "hardkeys" on the bottom lights up, but no touch inputs are recognized in the broken area.

Therefore I went ahead and ordered a replacement screen which should be here within a week. The only problem I have is that I am unable to find a tutorial/manual or even a quick description of how to separate the old screen from the phone.

Someone must have replaced the screen on this phone?

Any help would be greatly appreciated!

Bst Rgrds,
Andreas

Scutu

Tue Feb 04 2014, 03:45am

{ASUS_EMPLOYEE}

Registered Member #2402

Joined: Sun Jan 05 2014, 12:05am
Posts: 43
Thanked 1 time in 1 post

Hey, see this link for the digitizer and you can ask the seller for other parts.

Now you'll need someone with some technical skills for the replacement!

Good luck!
keep us posted about the process!

[ Edited Tue Feb 04 2014, 03:46am ]

Kaamio

Thu Jul 10 2014, 07:19am

{ASUS_EMPLOYEE}

Registered Member #2800

Joined: Tue May 27 2014, 09:21am
Posts: 11
Thanked 0 time in 0 post

Still anyone who has changed the digitizer for PFI??
Any advices?
My dad managed to drop my pfi on a concrete floor and the digitizer smashed into pieces. I ordered new one from chine but theres still no tutorial how to do it. Well I quess i'll have to open it with an axe...

Demelza

Tue Jul 15 2014, 08:35am

{ASUS_EMPLOYEE}

Registered Member #2177

Joined: Thu Oct 17 2013, 02:59pm
Posts: 239
Thanked 71 time in 49 post

Nope, don't do it like this.

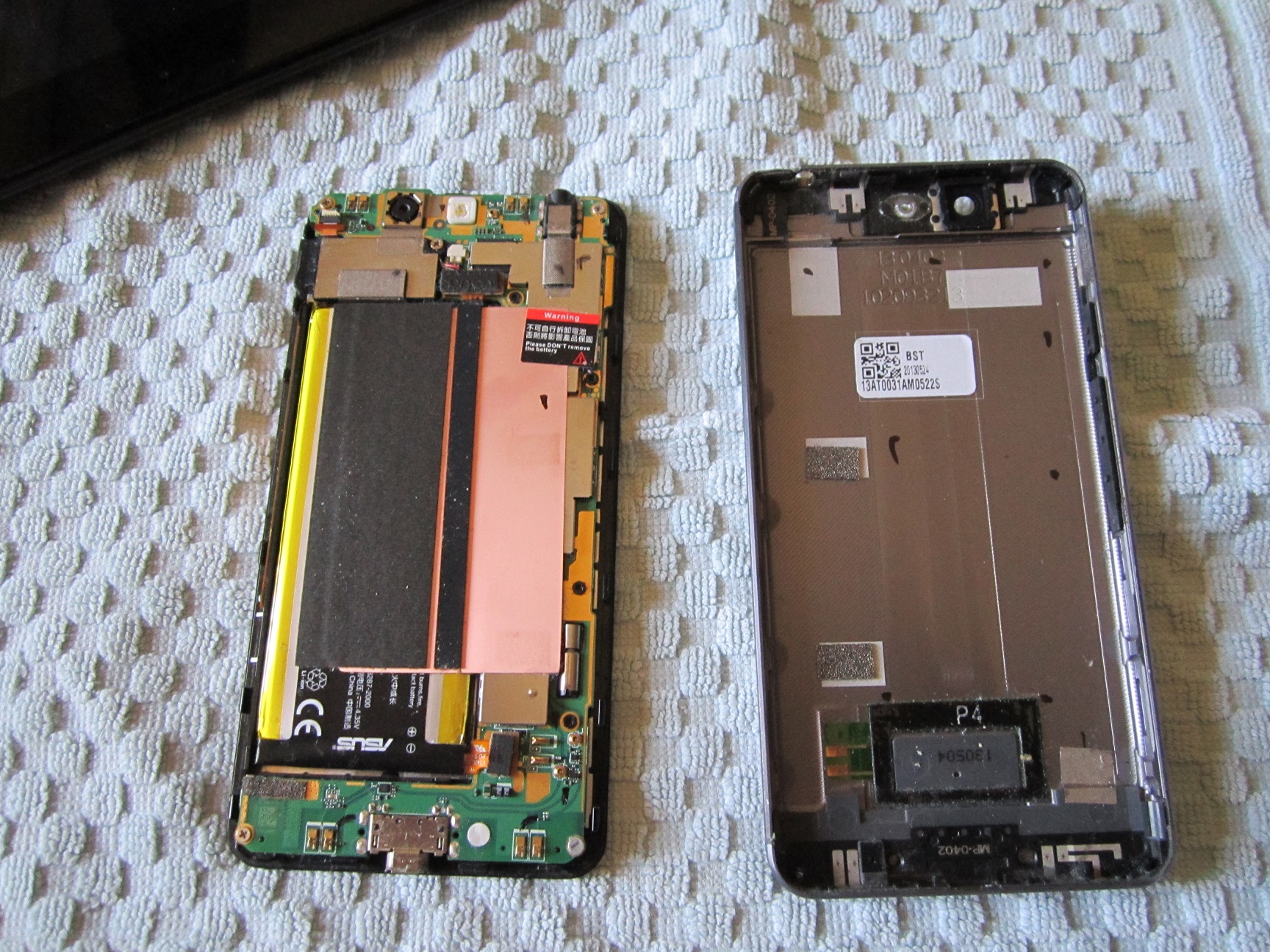

Use a rigid tool (for example, a flat screwdriver) and insert it between the screen and the back cover. Lift carefully (but use a little force, it doesn't come easily), it's held in place with a kind of small hooks, there's no screw to remove before opening it.

When you've done it on the whole perimeter of the phone, it'll eventually come off. You'll notice the motherboard and everything else is screwed to the screen, not to the back cover. So you'll need to have small screwdrivers to unscrew all and screw it to your new screen.

1 User said Thanks to Demelza for this post :
Kaamio (16 Jul : 06:53)

andreasmj

Tue Jul 15 2014, 08:48am

{ASUS_EMPLOYEE}

Registered Member #2324

Joined: Wed Dec 04 2013, 09:31am
Location: Oslo
Posts: 2
Thanked 0 time in 0 post

Good luck!
I had everything out but managed to break the LCD screen while trying to separate it from the broken screen.

Ended up with a nexus 5 and I haven't missed the padfone for one second.

Charenthe

Tue Jul 15 2014, 04:04pm

{ASUS_EMPLOYEE}

Registered Member #194

Joined: Thu Aug 30 2012, 07:18am
Location: Marseille
Posts: 103
Thanked 15 time in 15 post

You should found a clear way to change digitilizer here:
https://www.ifixit.com/Guide/Asus+Padfone+2+Screen+Replacement/12668

Similar product but good explanations!!!!

Good luck and let us know!

Kaamio

Wed Jul 16 2014, 06:52am

{ASUS_EMPLOYEE}

Registered Member #2800

Joined: Tue May 27 2014, 09:21am
Posts: 11
Thanked 0 time in 0 post

Oh. ****. Seems like the lcd is preetty fragile then :/ Gotta be ultra carefull when opening it!

Kaamio

Tue Jul 29 2014, 08:26am

{ASUS_EMPLOYEE}

Registered Member #2800

Joined: Tue May 27 2014, 09:21am
Posts: 11
Thanked 0 time in 0 post

Now its a proven fact. It is impossible to replace the digitizer to this phone.
It is glued to the lcd screen which is about 1mm thick.
It is IMPOSSIBLE to separate them from eachother.
I believe it is obvious that I too managed to break the lcd trying to separate them.
I have hard time to believe that someones actually done this job. Pics or it didnt happen!
If you have broken digitizer on your PFI just toss it in garbage can. It's useless now if you dont wanna pay 150$ for the lcd&digitizer combo. Do not even try to replace only the digitizer...

Jammer

Sun Sep 21 2014, 06:02am

{ASUS_EMPLOYEE}

Registered Member #2213

Joined: Mon Oct 28 2013, 08:05pm
Location: Göteborg
Posts: 22
Thanked 1 time in 1 post

I need a padfone infinity station for spare parts.
Is there anyone in Europe ..Who has a a working padfone infinity Station for sale .

[ Edited Sun Sep 21 2014, 06:06am ]

troubadour

Mon Sep 22 2014, 10:25am

{ASUS_EMPLOYEE}

Registered Member #474

Joined: Wed Nov 14 2012, 03:13pm
Location: France - Lebanon
Posts: 99
Thanked 10 time in 8 post

I just dropped my PFI too... Broken glass, screen still working but no touch.....

troubadour

Wed Oct 01 2014, 11:22am

{ASUS_EMPLOYEE}

Registered Member #474

Joined: Wed Nov 14 2012, 03:13pm
Location: France - Lebanon
Posts: 99
Thanked 10 time in 8 post

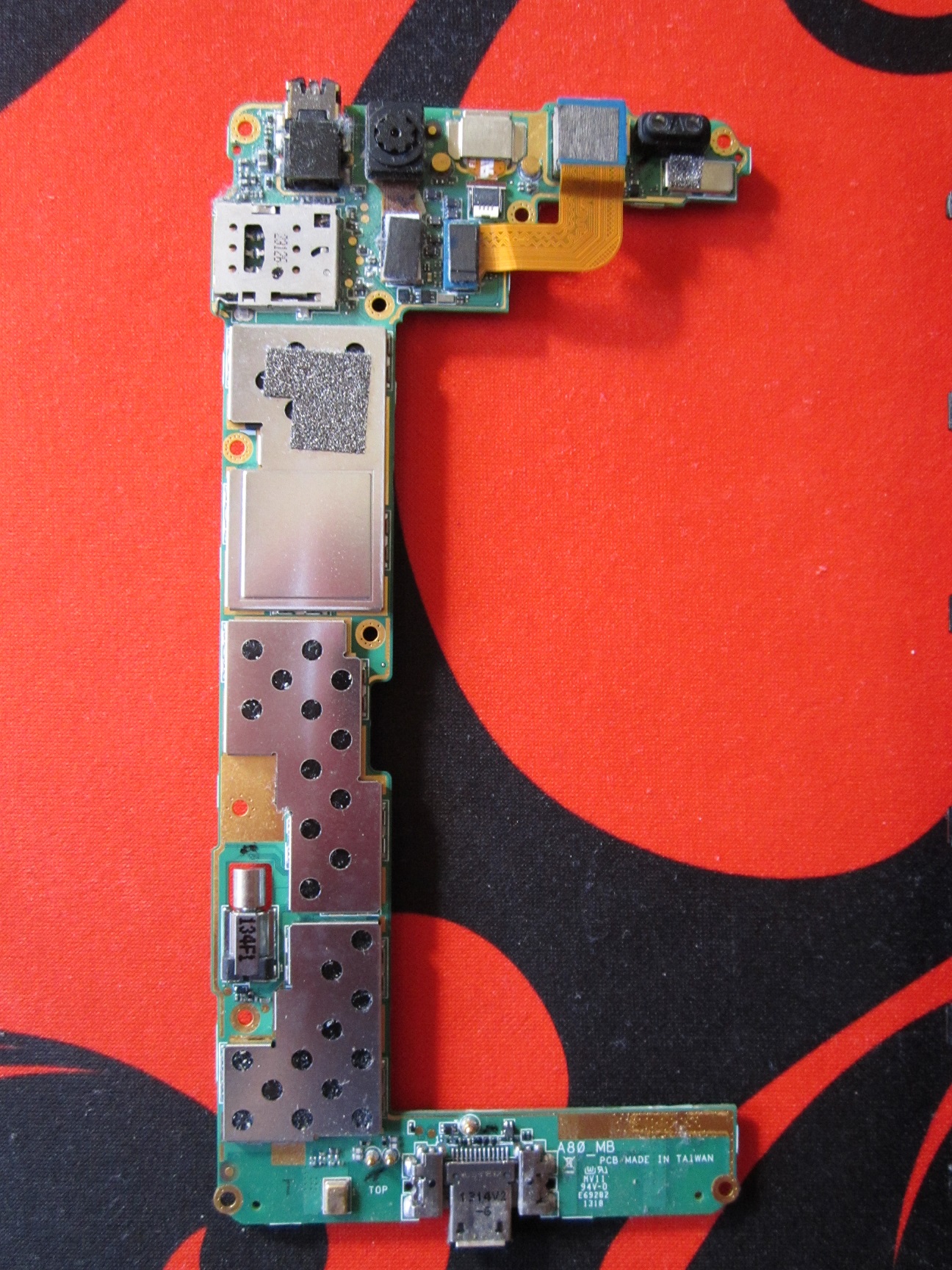

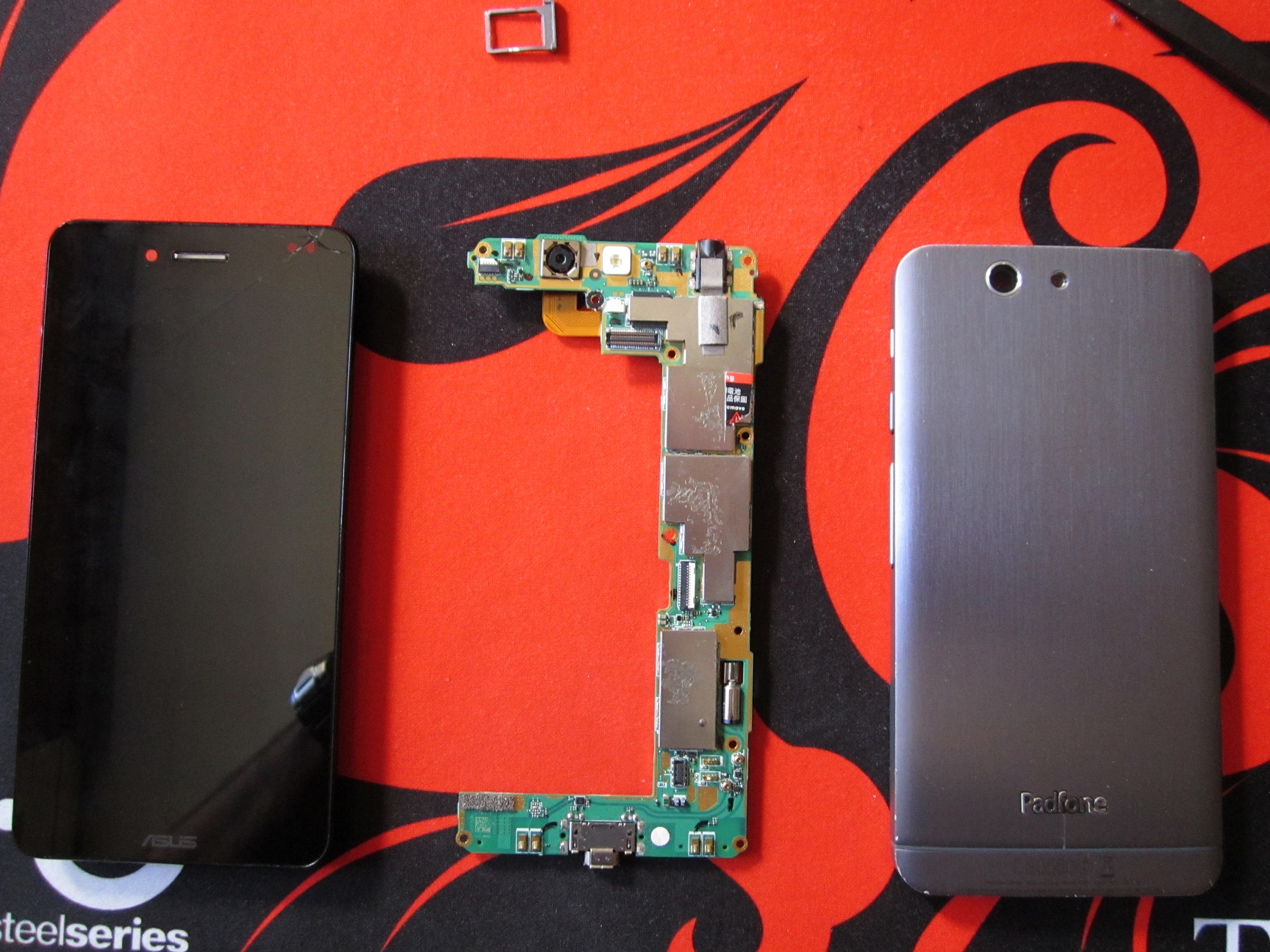

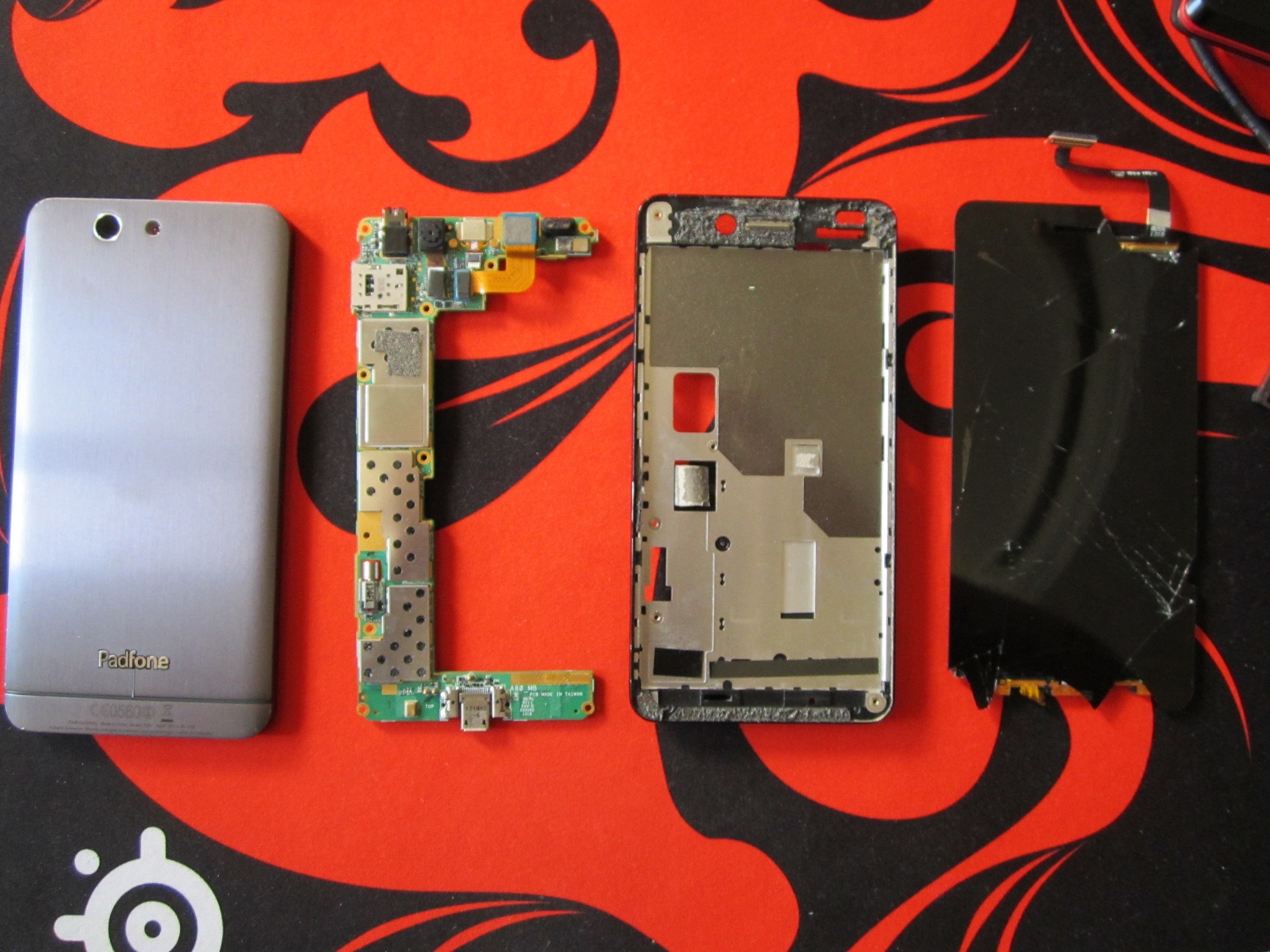

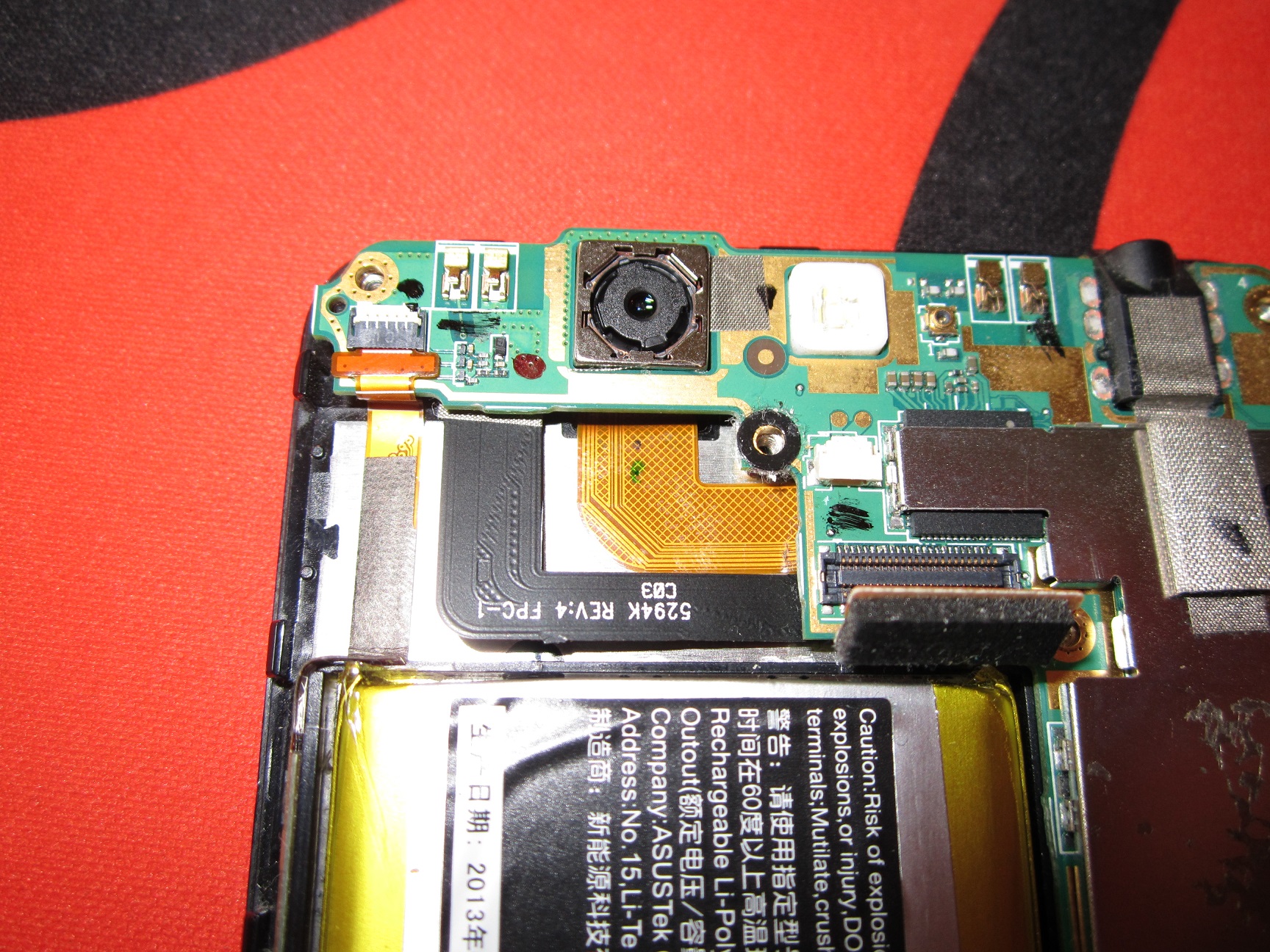

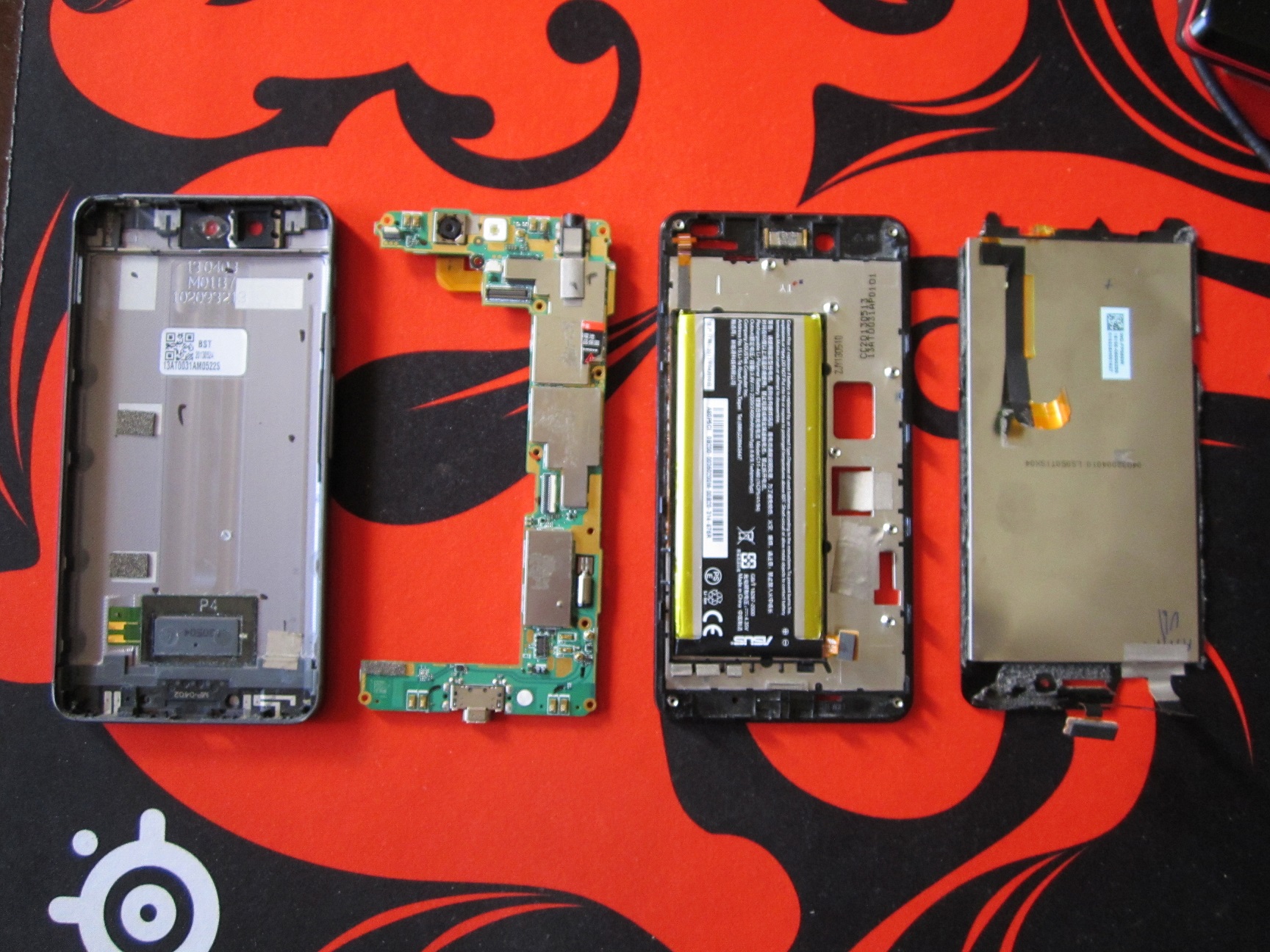

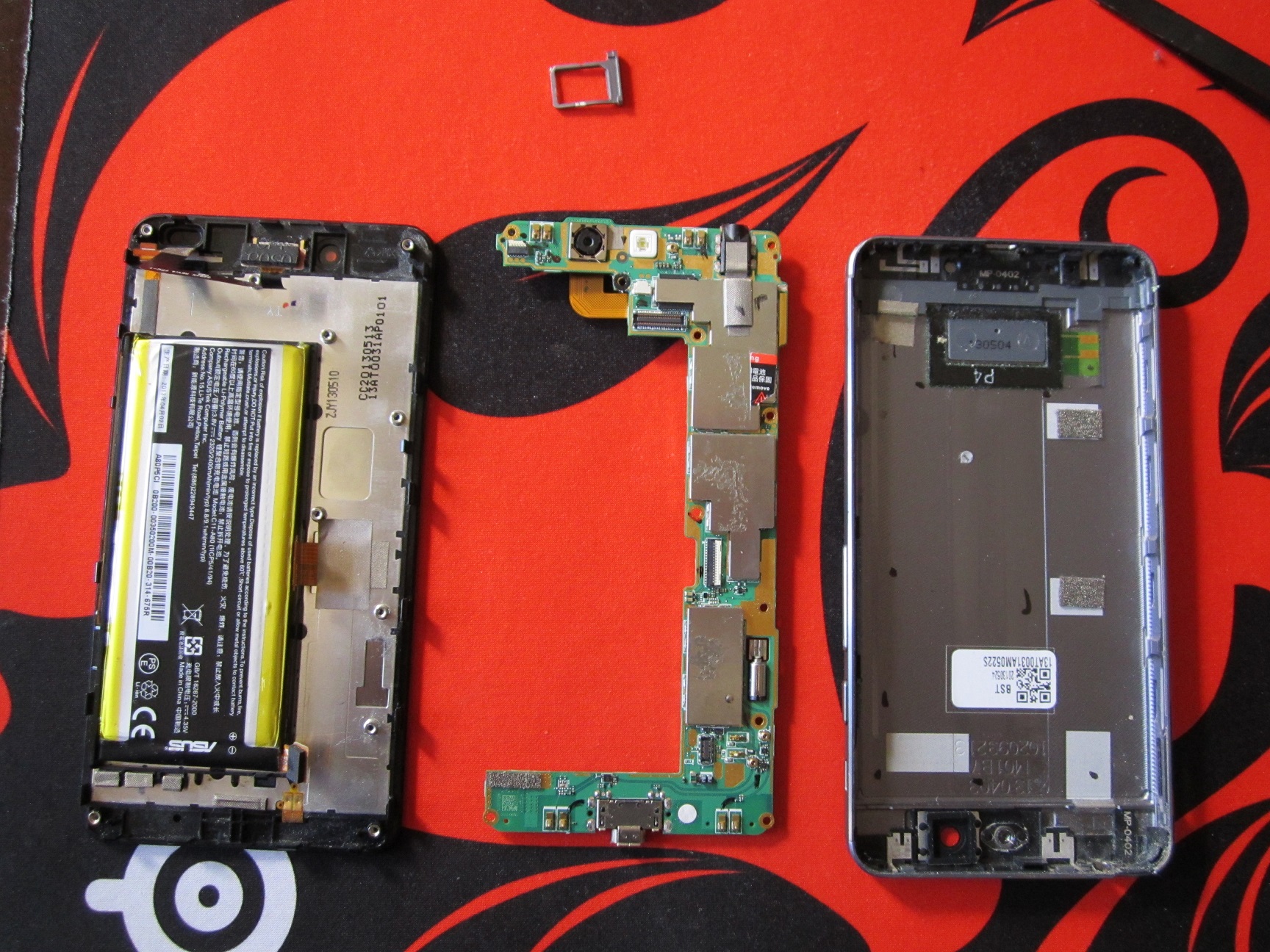

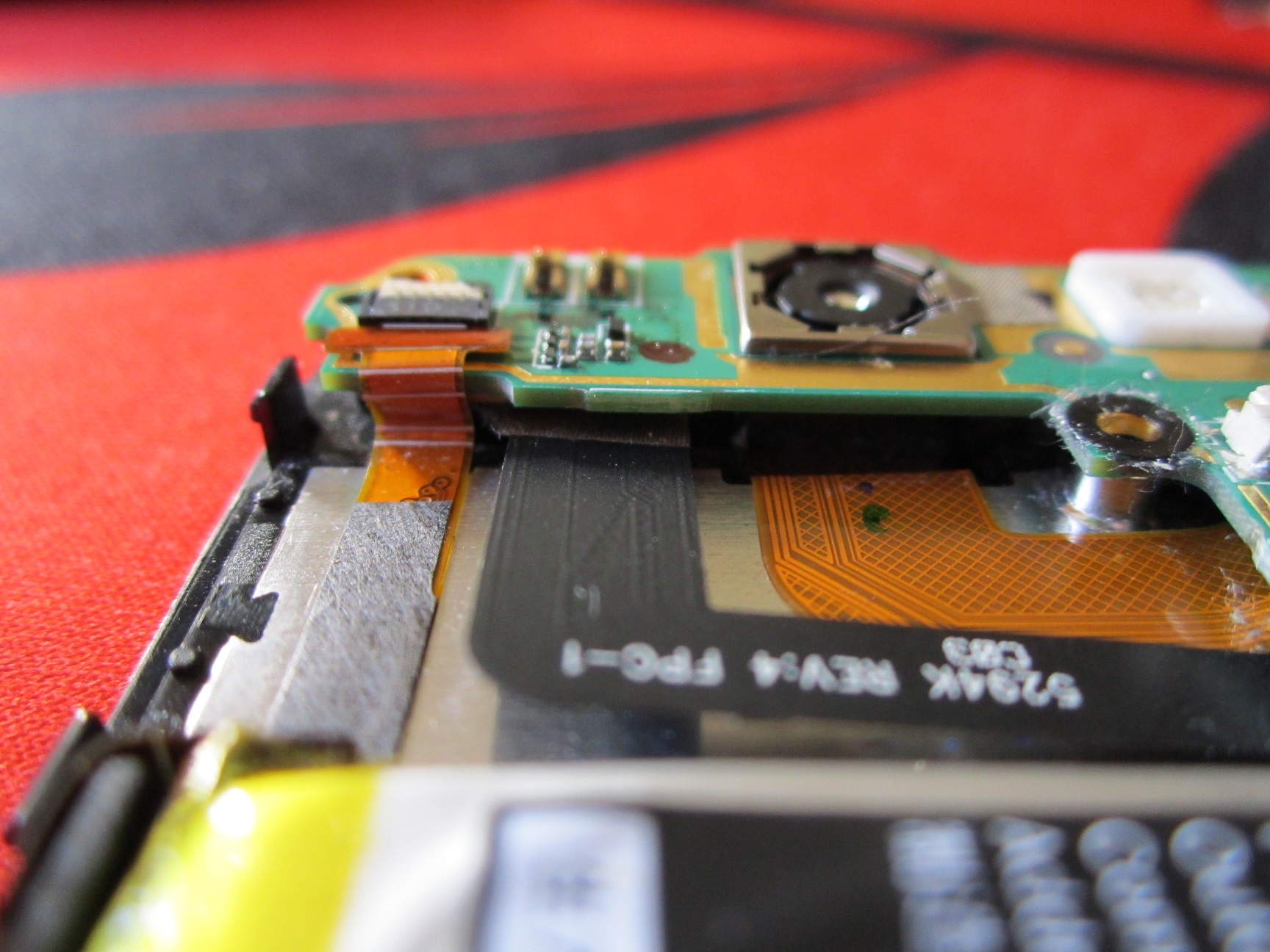

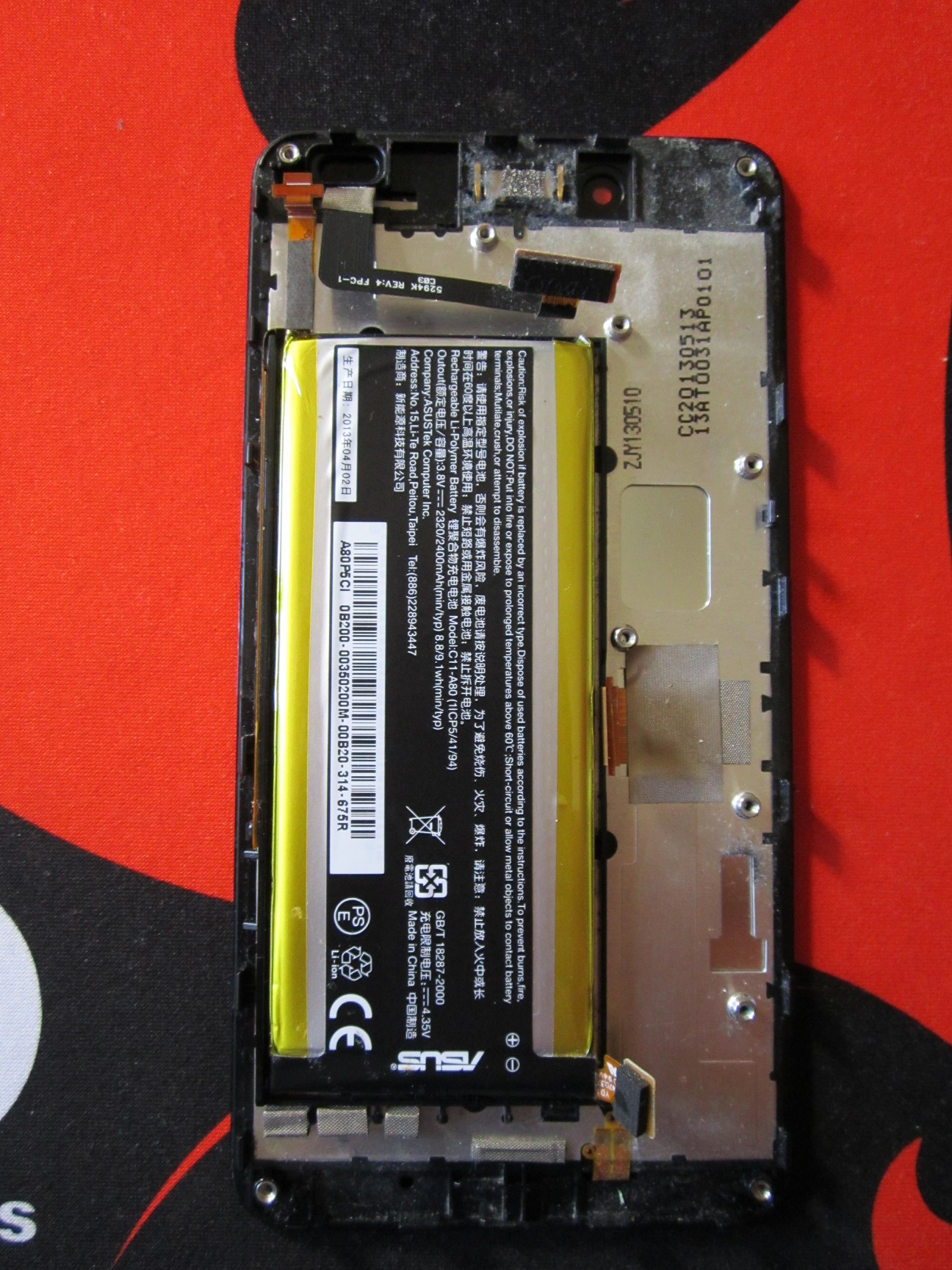

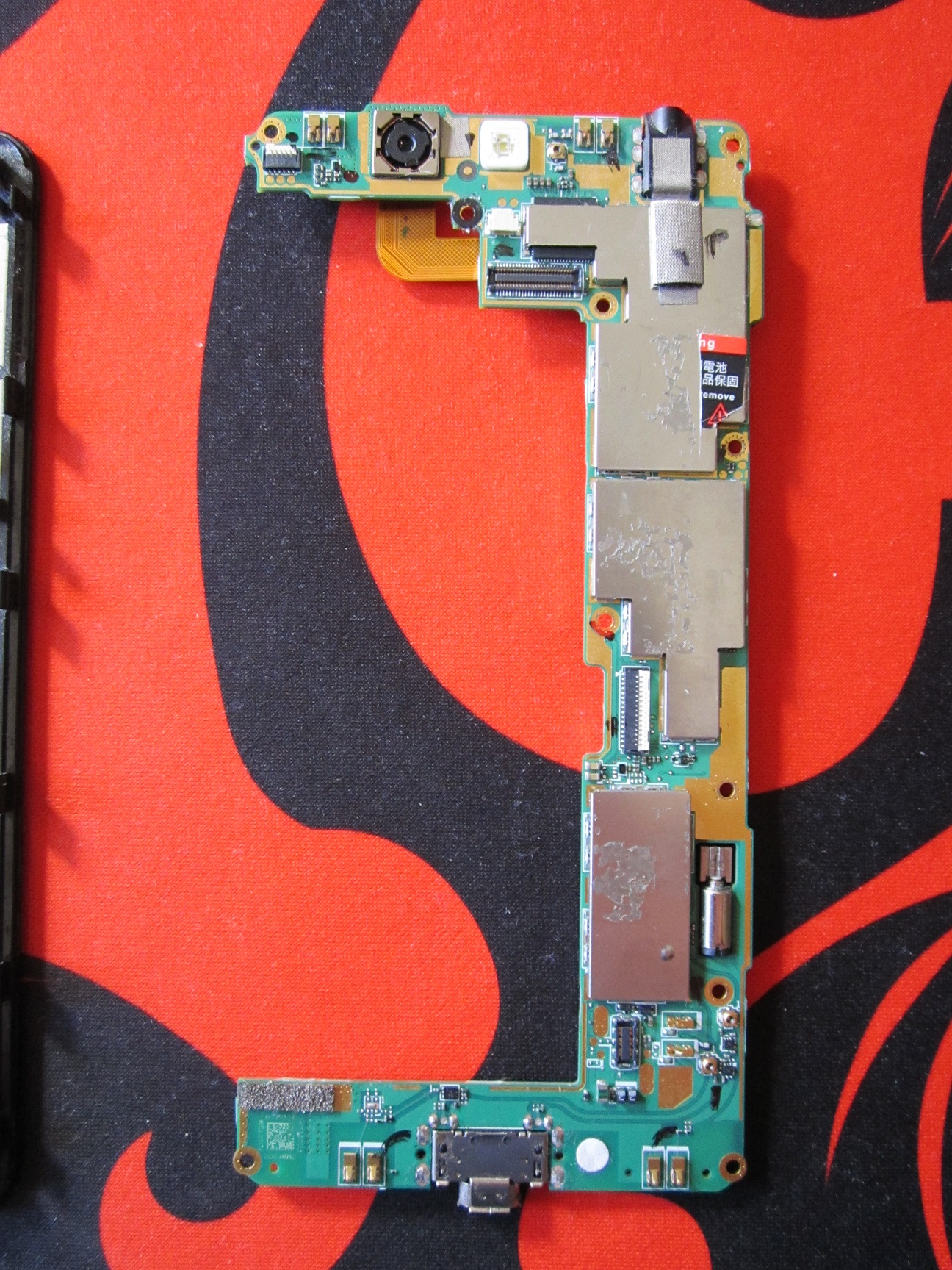

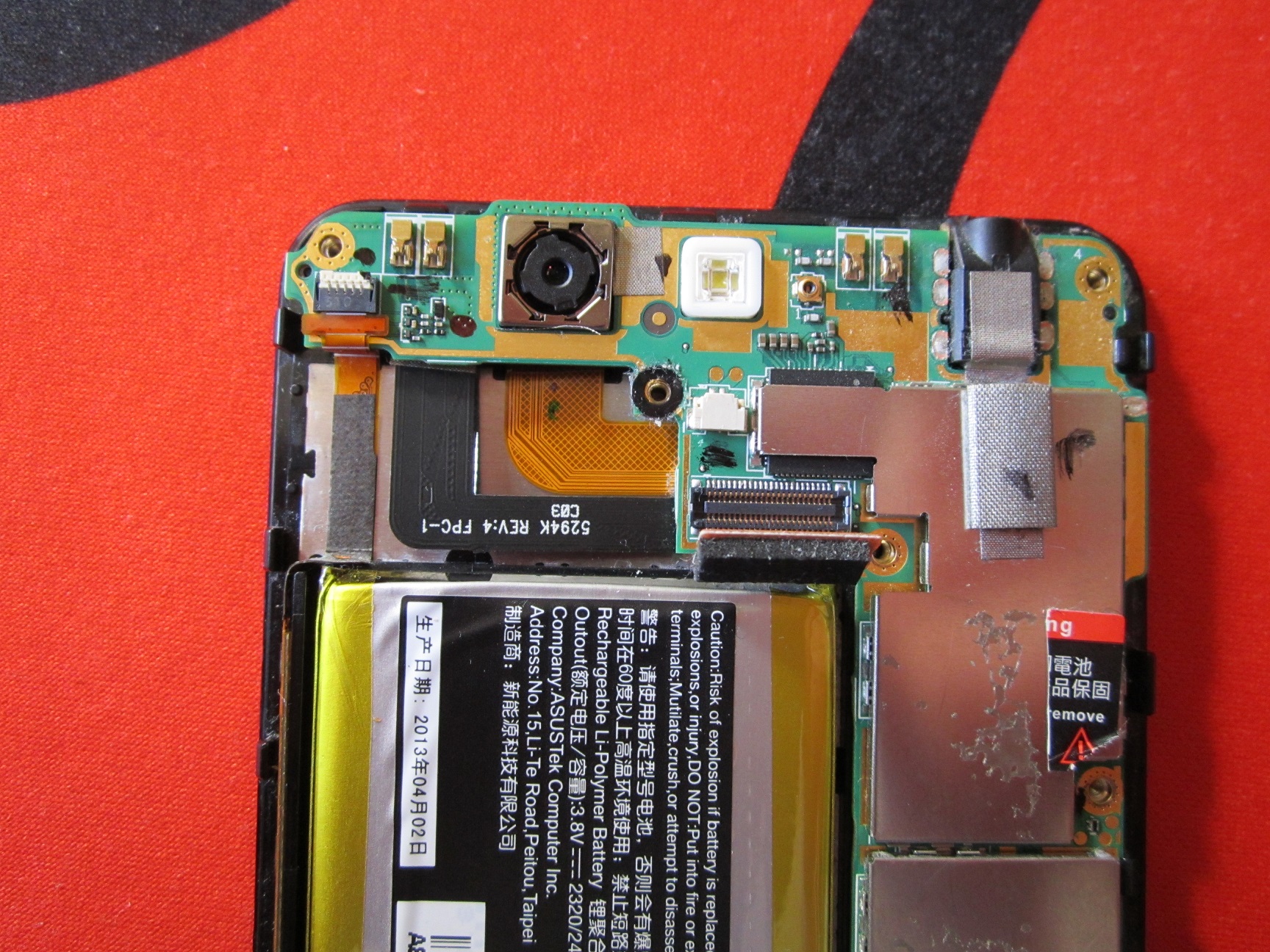

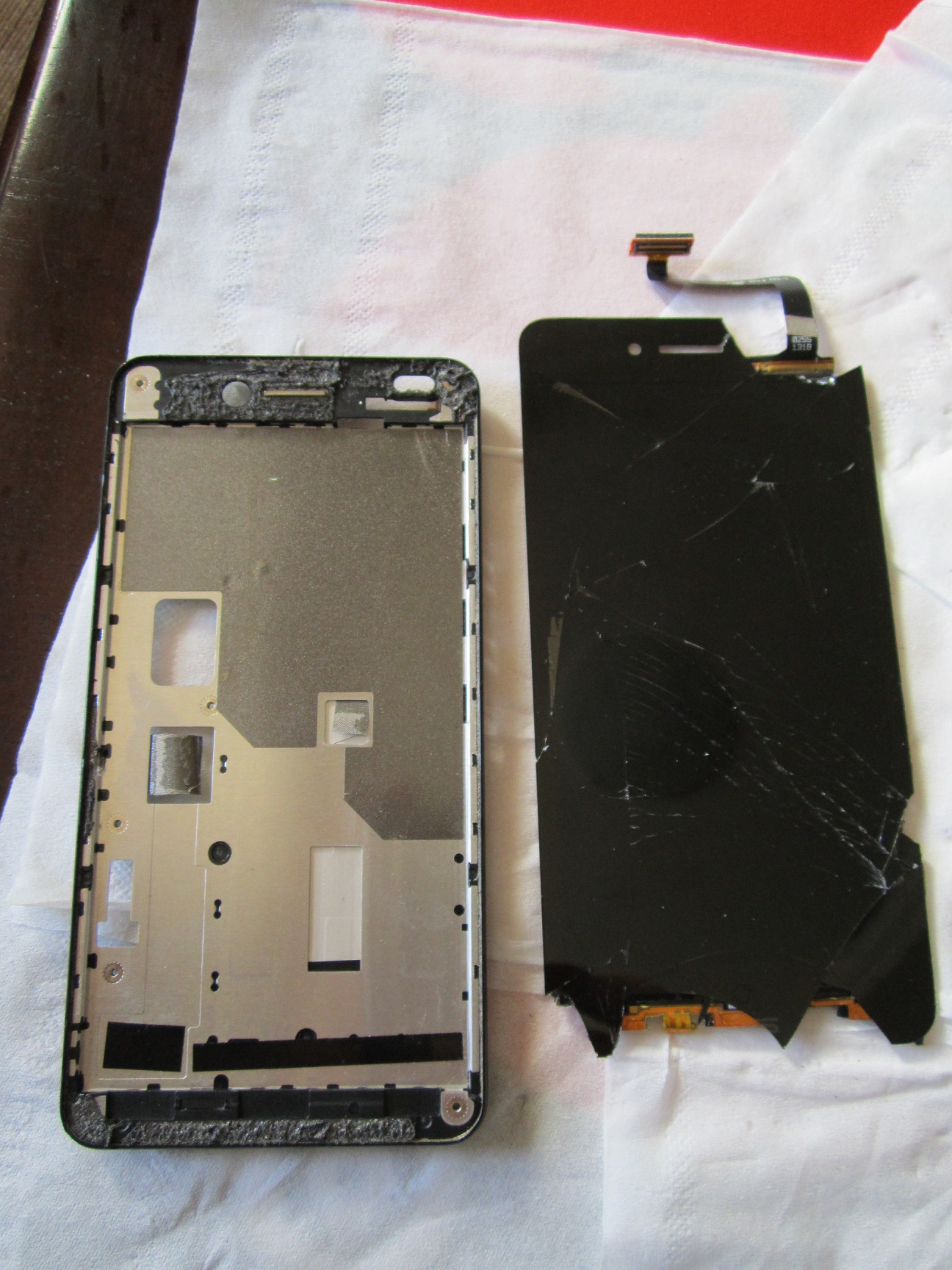

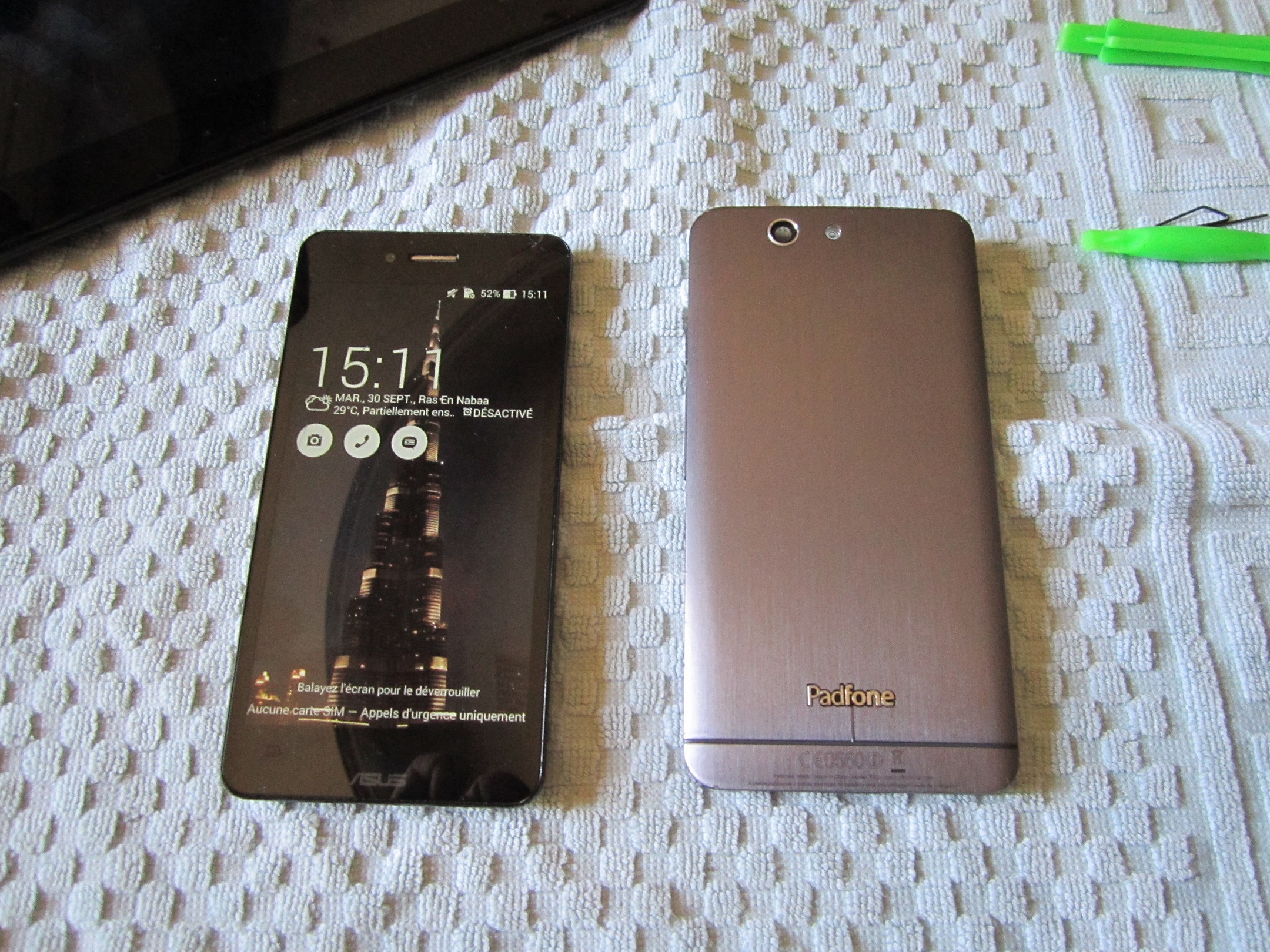

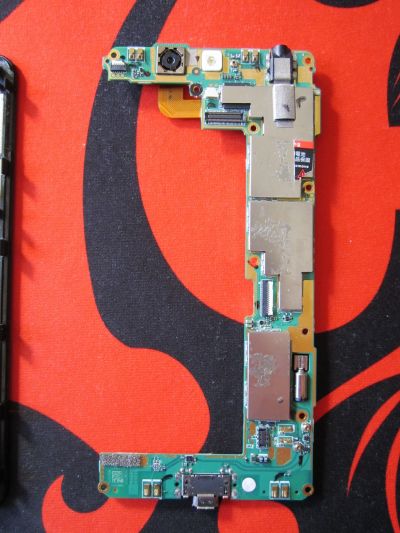

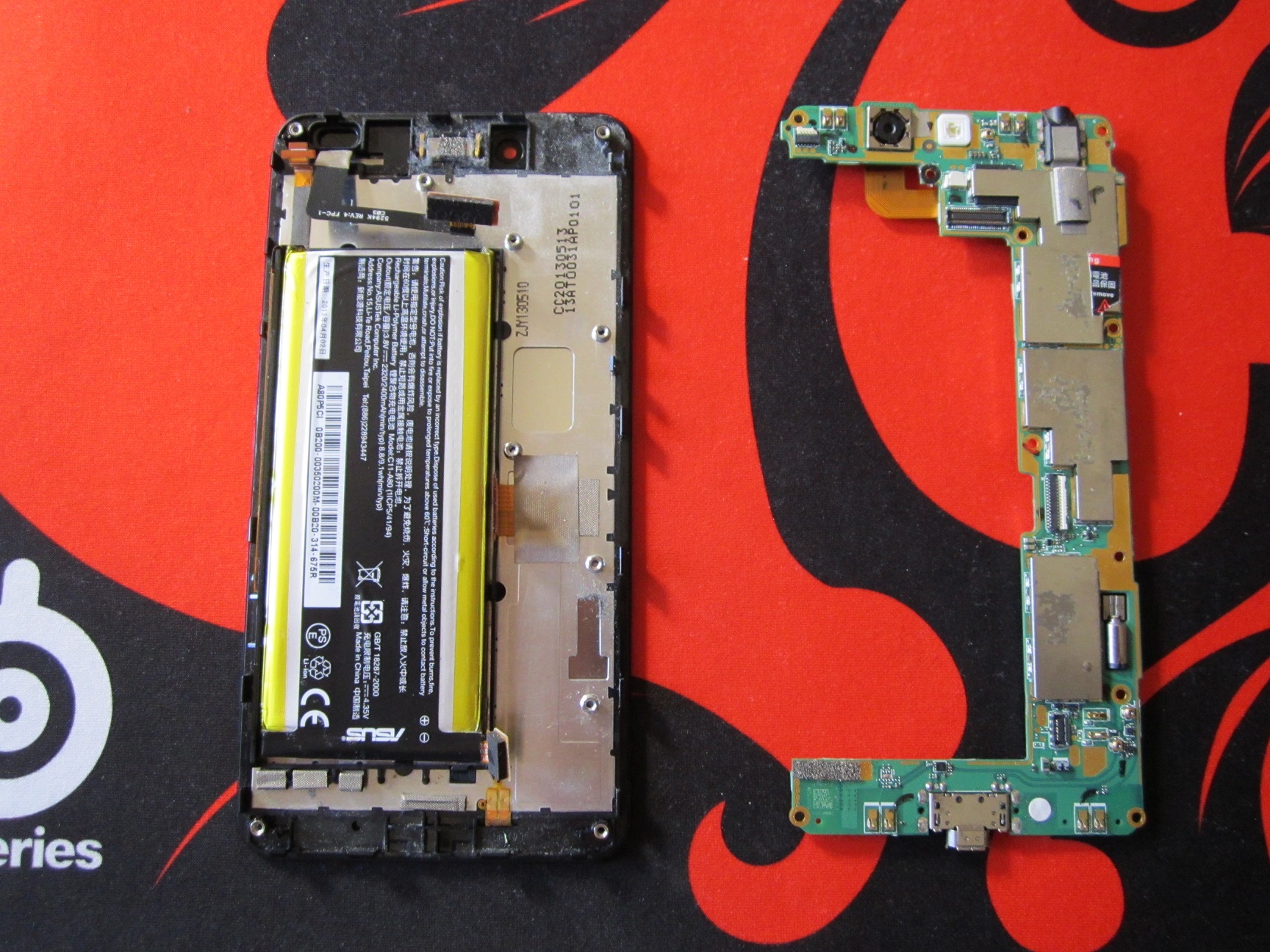

Ok so I decided to take it apart myself, I found some pics on a chinese facebook page to guide me a little bit (yes, I took my researches very far ^^), here are the pictures of what I ended up with. It's fairly easy actually, just pop the black bracket that holds the whole assembly, then a few screws and connectors to take off. The screen was dead anyway, so I didn't care to shatter it to take it off. Now I just need to order a new one (found one on Aliexpress that looks legit for 117$) and install it. I hope it'll work, I'll keep you updated

Message was editted at 11:22AM:

(Sorry for triple posting)

[ Edited Wed Oct 01 2014, 06:43pm ]

1 User said Thanks to troubadour for this post :
sparrow_s (18 Nov : 02:15)

Jammer

Fri Oct 03 2014, 06:57am

{ASUS_EMPLOYEE}

Registered Member #2213

Joined: Mon Oct 28 2013, 08:05pm
Location: Göteborg
Posts: 22
Thanked 1 time in 1 post

When you find a company that sell the right parts for this phone can you post the address

troubadour

Mon Oct 13 2014, 12:08pm

{ASUS_EMPLOYEE}

Registered Member #474

Joined: Wed Nov 14 2012, 03:13pm
Location: France - Lebanon
Posts: 99
Thanked 10 time in 8 post

I'll keep you updated on the screen, it has been sent, but I didn't receive it yet.

There is this site that has a lot of parts for the phone, depending on what you're looking for maybe it will work for you :

http://www.asusparts.eu/en/partfinder/Asus/Mobile/PadFone/Infinity%20A80

I got the screen from AliExpress though

troubadour

Mon Nov 17 2014, 02:56pm

{ASUS_EMPLOYEE}

Registered Member #474

Joined: Wed Nov 14 2012, 03:13pm
Location: France - Lebanon
Posts: 99
Thanked 10 time in 8 post

Sorry for the late reply

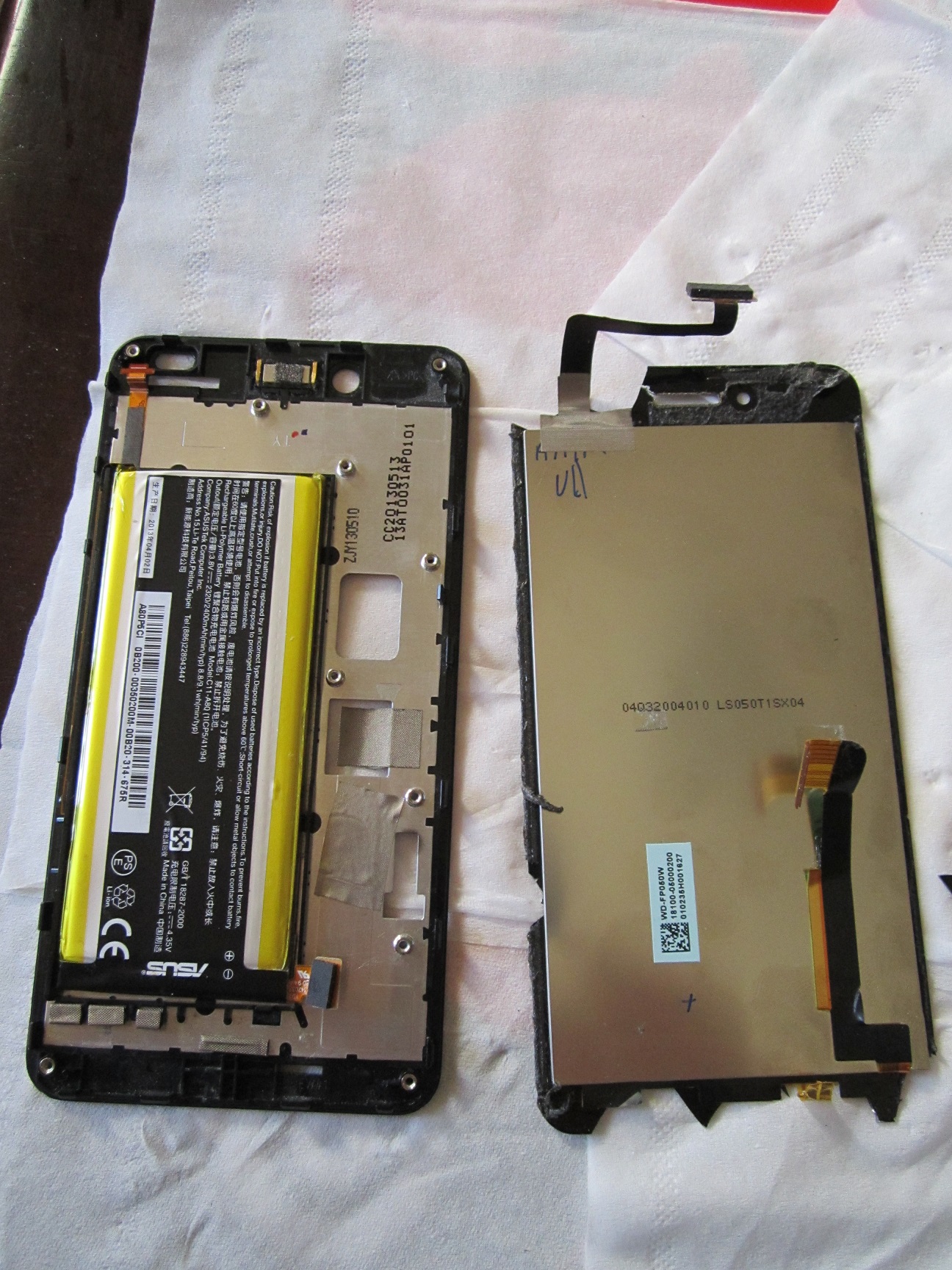

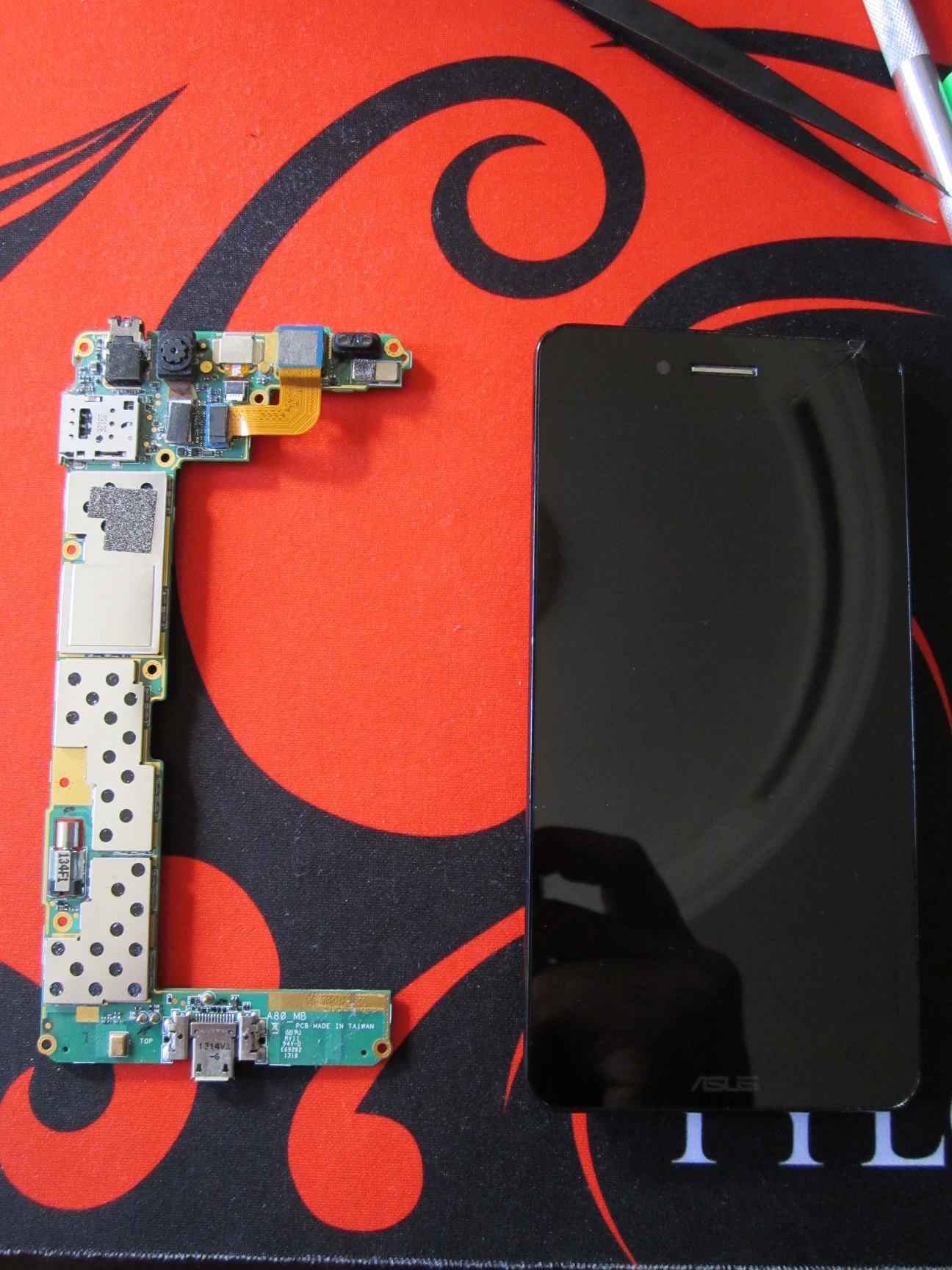

I've successfuly change my PFI screen :

1 User said Thanks to troubadour for this post :
sparrow_s (18 Nov : 02:15)
