padfone2 can't read SIM card


Moderators: Marc Schattorie, ctys2ard, oroo708, JHS_NL, RaithK, allram, Frits

Author

Post

henrik.roemer

Sun Feb 01 2015, 07:16PM

{ASUS_EMPLOYEE}

Registered Member #3218

Joined: Sun Feb 01 2015, 05:49PM
Posts: 1
Thanked 0 time in 0 post

My padfone2 suddenly (very suddenly, because I dropped it on the floor, like 2 feet) can't read the SIMcard anymore. It just says NO SIMCARD. Anything else workes great, Wi-Fi works, so no trouble getting online. But I can't use the phone part. Any good ideas out there ??

Fiili

Wed Feb 04 2015, 06:13PM

{ASUS_EMPLOYEE}

Registered Member #672

Joined: Mon Dec 17 2012, 10:49PM
Location: Roma
Posts: 181
Thanked 22 time in 21 post

If I'm not wrong, SIM contact pad is connected to the logic board via cable/connector. You can try to fix yourself removing back cover and disassembling the internal frame. Under there should be present the SIM pad and relevant connector to the logic board. It is a mere tentative, but maybe better option than send the phone back to nowhere for assistance.....
Of course do it at your own risk.

smundo1

Fri Mar 06 2015, 06:22PM

{ASUS_EMPLOYEE}

Registered Member #3242

Joined: Fri Mar 06 2015, 06:10PM
Posts: 1
Thanked 0 time in 0 post

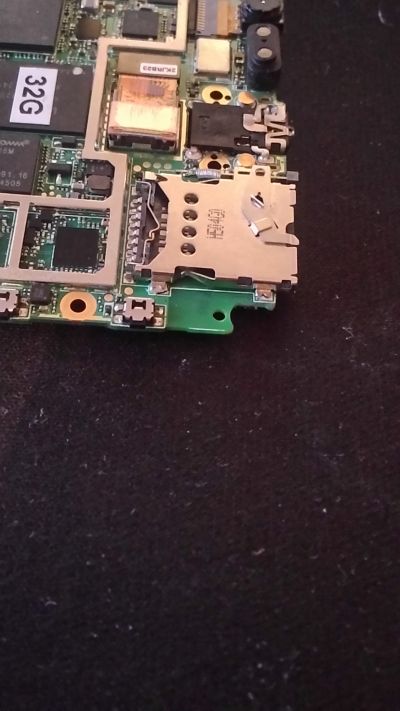

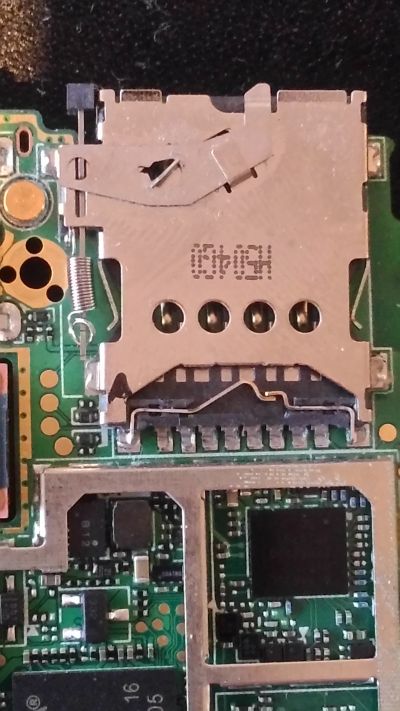

Unluckily, I have to say, you were wrong. I have the same problem as henrik and just opened up the phone. The sim-connector is soldered to the mainboard, 8 pins. I see nothing wrong with the connection here. The only thing is that of four "tiny feet", keeping the sim card holder in place, two seem to be loose. Nevertheless, they rather look glued than soldered. Does anybody have an idea or a similar problem? (Btw: This padafone was not dropped, it really just stoped working out of nowhere) - See attachments for a visual impression.
